In the world of lighting, PMMA is a preferred material because of the advantages it offers, combining versatility and resistance both in interior and exterior work, as it is a material capable of adapting to the most demanding lighting projects.

Its light weight, its excellent behavior as a light diffuser and its high impact resistance are some of its best-known characteristics. Not to mention, its long lifespan, even when working outdoors, in optimal conditions.

For those jobs that require ensuring visual comfort and a high degree of anti-glare, we present our PMMA XT microprism engraved. This material is designed for both indoor and outdoor LED lighting projects, combining, at the same time, a uniform finishing surface. This quality is characterized by:

• High light transmission index on colorless plates
• Excellent behavior as a light diffuser, homogeneous anti-glare performance.
• Suitable for lighting installations that must comply with UGR < 19
• Stable to the action of UV rays, excellent weather resistance
• Easy to handle, it allows cold and hot transformation without losing properties under the action of UV rays.

High transmission rate on colorless plates.

The colorless PO11 PMMA plate etched microstructure in prism has an excellent light transmission index, of 89% in 2 mm. The texturing provides a microprism surface, where the highly transparent substrate offers high light efficiency and a unique and homogeneous reduction of glare.

Excellent behavior as a light diffuser, homogeneous anti-glare performance.

Applying appropriate quality criteria to the design, installation and maintenance of all those elements involved in obtaining good lighting, we will obtain the required visual comfort results, all of this guaranteeing maximum energy efficiency and providing functionality and comfort to the space.

One of the recurring solutions to reduce glare is the use of prismatic diffusers in luminaires such as the PO11 PMMA XT Microprism Engraved. This type of plate can be combined with rigid films or diffusers, and thus achieve additional diffusion power, in addition to this, we are able to hide the LED light spot.

Suitable for lighting installations that must meet UGR < 19.

Lighting has complex design characteristics, technical features and compliance with very specific regulations and regulations.

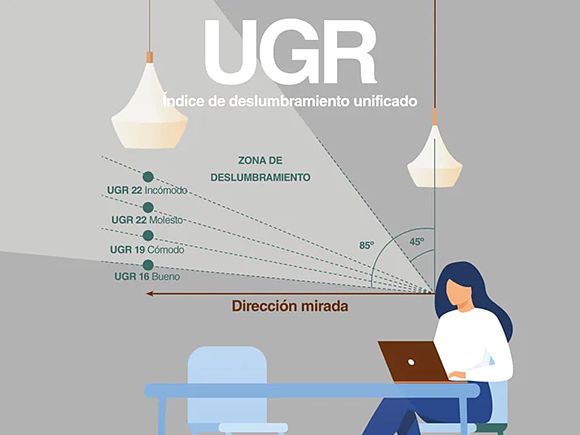

This screen plate helps to classify the resulting lighting installation as UGR < 19 (Unified Glare Index limit), according to UNE-EN 12464. 1:2022 Lighting. Workplace lighting. Part 1: Indoor workplaces. The UGR is measured for an installation, not for a lighting fixture. However, the design of a lighting fixture can have a significant impact on the UGR of the facility where it is used.

In this case, the PO11 PMMA XT Microprism Engraving can be used in those facilities that must be classified < 19, such as offices, classrooms, reading rooms, medical offices (examination and treatment rooms).

Stable to the action of UV rays, excellent weather resistance.

The PO11 PMMA XT Microprism Engraved plates have excellent weather stability against UV radiation. Even after years of exposure to solar radiation, the plates do not show substantial variations in their properties.

Easy to handle, it allows the transformation of both cold and hot plates without losing properties under the action of UV rays.

This series of PMMA XT plates with surface engraving allows a large number of processing and handling techniques, both cold and hot:

• Curved and cold folded.
• Drilling/Cutting/Milling.
• Thermoforming (pre-drying required).

Applications.

• Interior and exterior lighting designs.
• Office lighting.
• Point of sale lighting designs
• Architectural applications.
• Decorative lighting.

Available range.

The available thicknesses of the PO11 PMMA XT Microprism Engraving range from 2 to 3 mm. Product on request. Check availability, minimum production and delivery time.

Other engravings:

PO11 PMMA XT Pyramid
